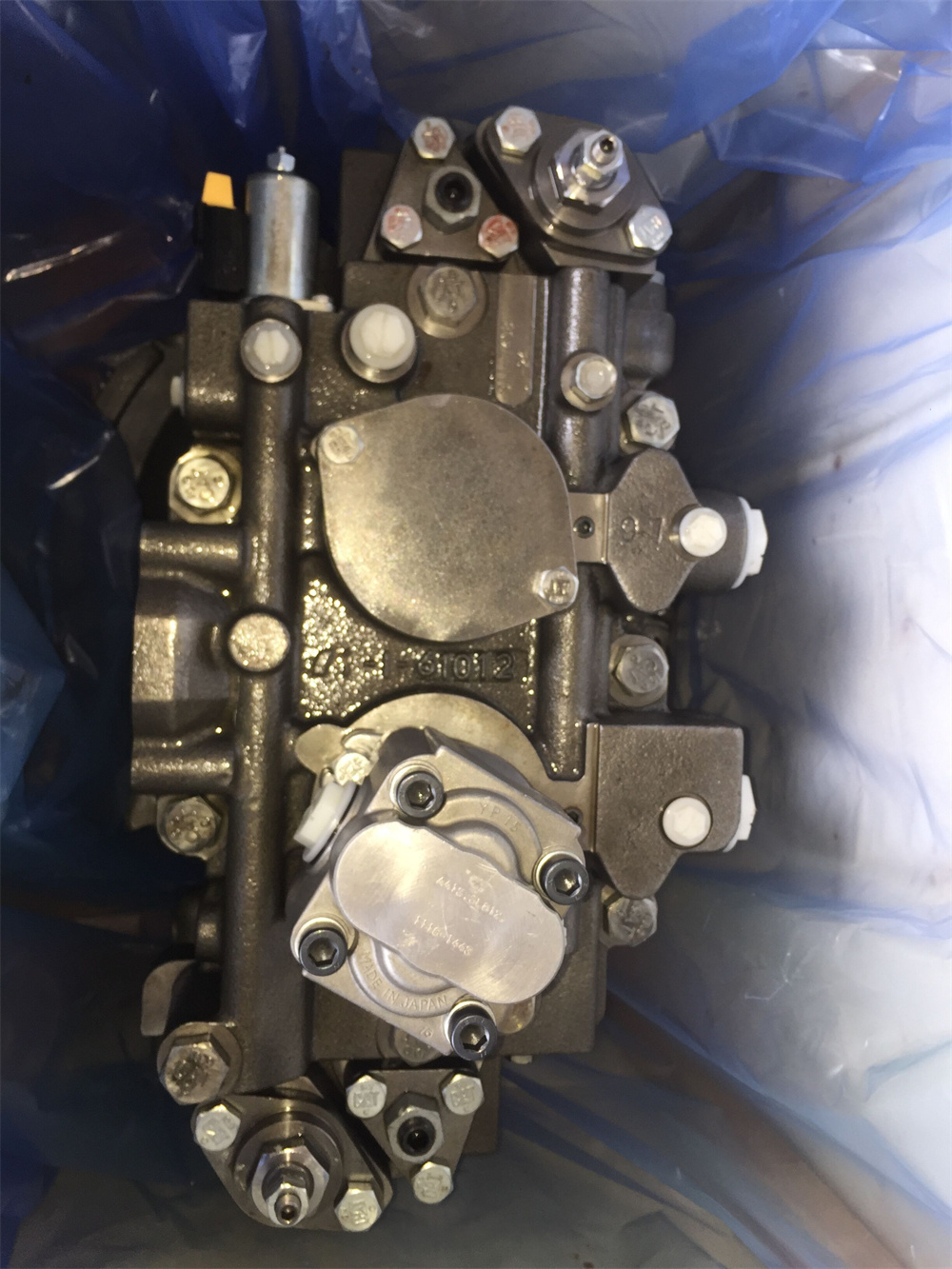

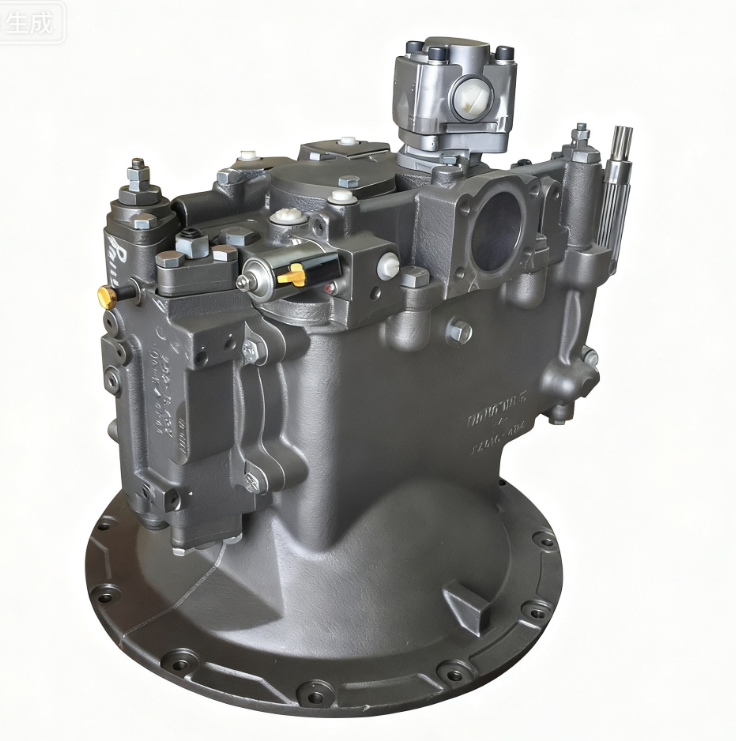

Belparts E315C Excavator Hydraulic Pump SBS80 176-3963 Pump for Repair
Our main products are Excavator Hydraulic spare parts, Hydraulic main pump, Swing Motor, Travel Motor, Final Drive Ass'y, Swing Device Ass'y, Swing Gearbox, Travel Gearbox, Gears, Regulators, Relief Valve, Fan motor and other hydraulic items with genuine and aftermarket quality.
Until now, our products enjoy a high reputation and have been exported to more than 125 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with its own brand "Belparts" which are widely acclaimed by foreign customers.
If you are interested in any models, please contact with us with the OEM model code, and we will share with our product catalogue and check the prices for you very soon.
If you are interested in any models, please tell us the OEM model code, and we can check the prices for you very soon.
More detail please contact with us!
| Pos. | Part No | Qty | Parts name |
| 1 | 4I-1022 | [2] | ORIFICE |
| 2 | 7Y-4215 | [2] | SPACER |
| 3 | 096-3983 | [1] | RING-RETAINING |
| 4 | 118-4057 | [18] | SPRING |
| 5 | 126-2016 J | [1] | PUMP GP-GEAR (PILOT) |
| 9T-0835 | [1] | RING-RETAINING | |
| 6 | 129-7859 | [2] | SET-BEARING |
| 7 | 129-7863 | [1] | COVER |
| 8 | 129-7921 | [2] | RING-RETAINING |
| 9 | 129-7927 | [2] | BEARING |
| 10 | 129-7979 | [4] | DOWEL |
| 11 | 150-5782 | [2] | COVER |
| 12 | 173-3427 | [2] | GUIDE-BALL |
| 13 | 173-3473 | [2] | PLATE |
| 14 | 173-3496 | [1] | BARREL AS |
| (INCLUDES VALVE PLATE) | |||
| 15 | 173-3498 | [1] | BARREL AS |
| (INCLUDES VALVE PLATE) | |||
| 16 | 177-2470 | [1] | COVER |
| 17 | 177-2471 | [1] | COVER |
| 18 | 179-9763 | [1] | FLANGE |
| 19 | 191-5709 | [2] | PISTON AS |
| 20 | 192-0573 | [4] | PIN-DOWEL |
| 21 | 189-9763 | [8] | SEAL-O-RING |
| 22 | 200-3333 | [1] | HEAD-PUMP |
| 23 | 200-3334 | [1] | COVER |
| 24 | 225-4543 | [1] | SHAFT-DRIVE |
| 25 | 225-4544 | [1] | SHAFT-DRIVEN |
| 26 | 129-7854 | [1] | CASE |
| 27 | 129-7857 | [1] | GASKET |
| 28 | 129-7855 | [1] | GASKET |
| 29 | 129-7925 | [1] | SEAL-LIP TYPE |
| 30 | 242-6801 | [2] | SWASHPLATE AS |
| (EACH INCLUDES) | |||
| 094-1875 | [1] | DOWEL | |
| 173-3428 | [1] | BUSHING | |
| 242-6803 | [2] | PIN-DOWEL | |
| 31 | 242-6804 | [4] | BEARING |
| 32 | 247-8920 | [2] | ORIFICE |
| 33 | 247-8782 | [1] | BODY |
| 34 | 256-0093 Y | [1] | HEAD GP-PUMP (DRIVE)(DRIVE) |
| 35 | 256-0096 Y | [1] | HEAD GP-PUMP (DRIVEN)(DRIVEN) |
| 37 | 094-1875 | [6] | DOWEL |
| 38 | 094-1882 | [16] | PLUG |
| 39 | 095-0946 | [2] | RING-RETAINING |
| 41 | 096-3944 | [1] | SEAL-O-RING |
| 42 | 273-8314 | [1] | SEAL-O-RING |
| 43 | 190-4896 | [2] | PLUG |
| 44 | 193-1736 | [4] | SEAL-O-RING |
| 45 | 3K-0360 | [2] | SEAL-O-RING |
| 46 | 7M-8485 | [2] | SEAL-O-RING |
| 47 | 7X-2557 M | [1] | BOLT (M16X2X140-MM) |
| 48 | 8J-4645 | [2] | PLUG (STRAIGHT THREAD O-RING) |
| 49 | 273-8315 | [2] | SEAL-O-RING |
| 50 | 8T-4136 M | [18] | BOLT (M10X1.5X25-MM) |
| 51 | 8T-4137 M | [2] | BOLT (M10X1.5X20-MM) |
| 52 | 8T-4139 M | [10] | BOLT (M12X1.75X30-MM) |
| 53 | 8T-4140 M | [4] | BOLT (M16X2X60-MM) |
| 54 | 8T-4175 M | [2] | BOLT (M16X2X90-MM) |
| 55 | 8T-4176 M | [2] | BOLT (M12X1.75X90-MM) |
| 56 | 8T-4192 M | [10] | BOLT (M12X1.75X25-MM) |
| 57 | 8T-4196 M | [2] | BOLT (M10X1.5X35-MM) |
| 58 | 9S-4185 | [2] | PLUG (3/4-16-THD) |
After-sales Information Collection Regulations
Dear Customer,
Regarding the after-sales service of the product, in order for us to correctly identify the cause together and quickly develop a solution based on the cause, please be sure to provide the following information:
1. The model of the excavator installed, the picture of the excavator nameplate.
2. Duration of product use.
3. Installation picture and connection picture of the product.
4. Video of the product during operation.
5. Specific description of product problems and failures.
6. Video of the disassembly of the product. (Note: Please avoid the wrong disassembly operation leads to product damage)
7. Detailed pictures of damaged accessories.
If you can not provide the above information, our company can not determine whether the product quality problems. Because the damage of the product may also be the problem of installation or human damage, so our company can refuse the after-sales service.
If you can provide the above information, our company will find three professional technicians to make a judgment according to the information you provide, if it is a quality problem, we will provide after-sales service. If it is not a product quality problem, we will assist you to deal with the after-sales service together, but the ultimate responsibility is your party.
GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
2025.10.30
